Jewelry Showcase Door Type Light
Jewelry Showcase Door Type Light for premium glass counters, watch displays and luxury retail fixtures. The UOL-OY-GTD801 / GTD802 uses a stable double-post structure and a 355° rotating light head for precise, flexible aiming.
Powered by 12V or 24V DC at 14W/m, the aluminum LED bar delivers Ra>85 color rendering with a wide 120° beam. Choose 3000K, 4000K or 6500K and silver, black, white or gold finishes.
Built for jewelry brands, shopfitters and showcase manufacturers, the system supports OEM lengths, post heights, cable exits and mounting details for repeatable multi-store rollouts.

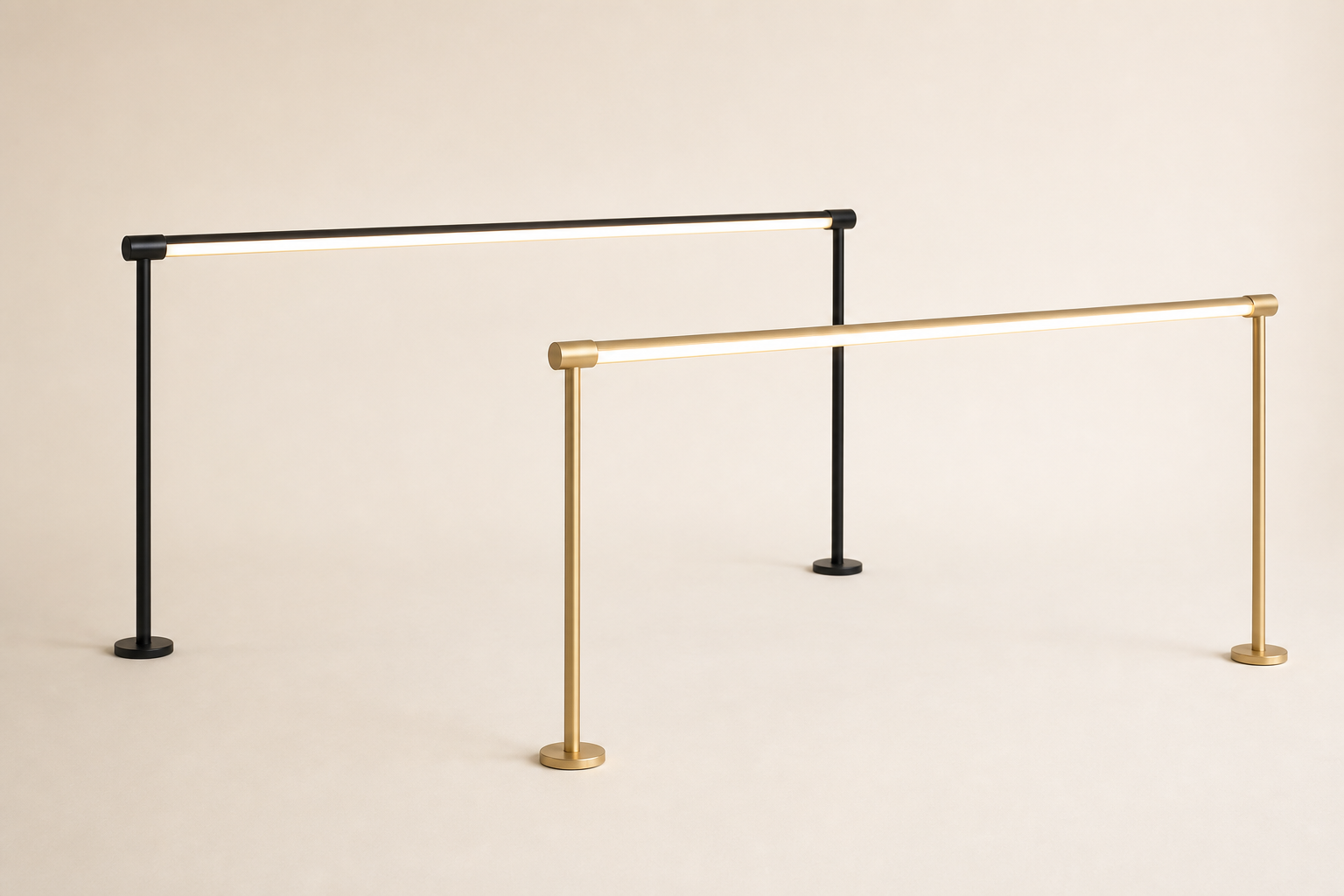

Stable Double-Post Structure
Two slim Ø8 mm support rods secure the light bar at both ends, maintaining accurate alignment in long glass showcases.

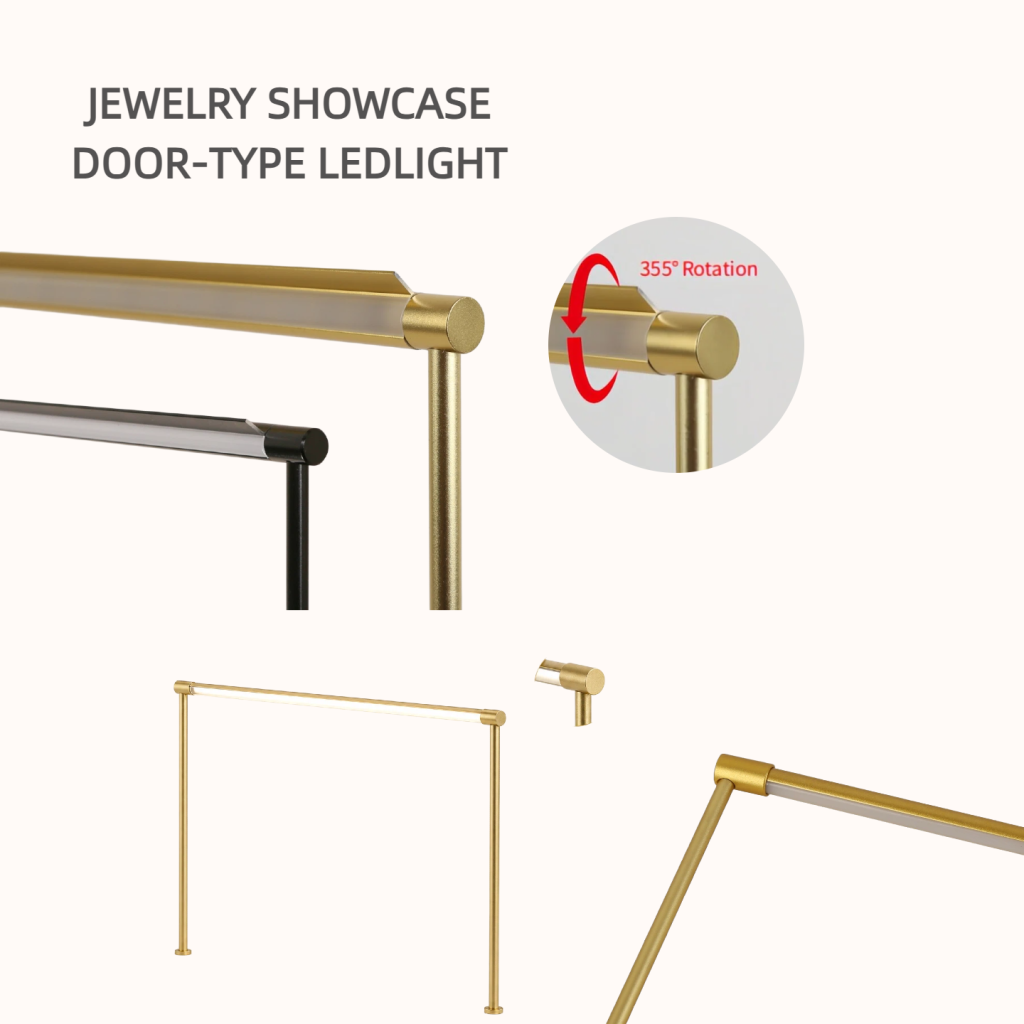

355° Flexible Rotation
Rotate the Ø15 mm light head to aim the wide 120° beam precisely across jewelry trays and changing Visual Merchandising layouts.
Low-Voltage OEM Integration
12V/24V DC operation, 14W/m output, Ra>85 and custom lengths, post heights, cable exits and finishes for fixture-ready production.
Jewelry Showcase Door Type LED Light
The Jewelry Showcase Door Type Light is a double-post LED light bar engineered for premium glass display cases. Models UOL-OY-GTD801 and UOL-OY-GTD802 combine stable two-point mounting with a 355° rotating light head, helping jewelry brands, shopfitters and fixture manufacturers direct clean, uniform light exactly where merchandise needs it.
With safe 12V/24V DC input, 14W/m power, Ra>85 color rendering and a wide 120° beam, the system provides balanced illumination for rings, watches, necklaces and luxury accessories without bulky overhead fittings.
Core Features & Benefits
Stable Double-Post Design
Two slim support rods secure the light bar at both ends for a clean architectural line and reliable alignment inside long glass showcases.
355° Adjustable Aiming
Rotate the Ø15 mm light head to fine-tune the illumination after installation and adapt quickly to changing Visual Merchandising layouts.
Uniform 120° Beam
The wide beam delivers even horizontal coverage across jewelry trays, reducing harsh bright spots and distracting shadows.
OEM Fixture Integration
Custom bar length, support height, cable exit and finish simplify integration into new showcase drawings and rollout programs.

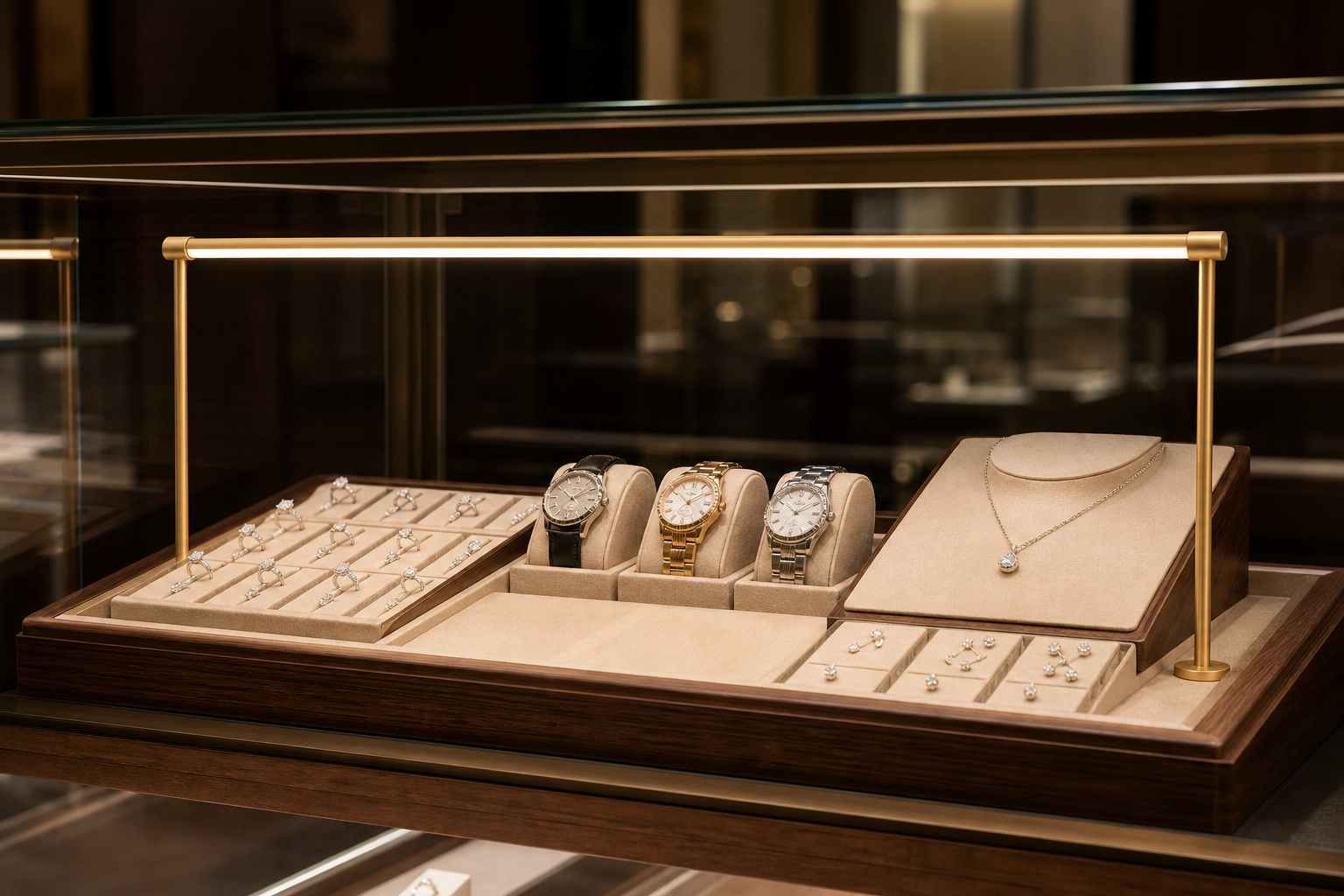

Designed for luxury retail
Clean Integration, Flexible Merchandising
The slim double-post profile keeps attention on the merchandise. The reversible aiming range supports both front-facing sparkle and broader tray illumination, while low-voltage operation suits custom timber and glass fixtures.
Available in silver, black, white or gold, the aluminum housing can be coordinated with showcase hardware and brand finishes.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product / Models | Jewelry Showcase Door Type LED Light — UOL-OY-GTD801 / UOL-OY-GTD802 |
| Configuration | Horizontal LED light bar with two vertical support rods |
| Power | 14W/m |
| Input Voltage | 12V / 24V DC |
| Color Rendering Index | Ra>85 |
| Beam Angle | 120° |
| Color Temperature | 3000K / 4000K / 6500K |
| Housing / Finish | Aluminum; silver, black, white or gold |
| Dimensions | Ø15 mm light head; Ø8 mm support rods; length and post height customizable |
| Adjustment | 355° rotating light head |
Product Dimensions & Installation
Fixture-ready installation
Confirm showcase internal width, required post height, mounting-hole position and cable route during the drawing stage. The light bar is then manufactured to match the fixture.
Tool-free aiming: after mounting and low-voltage connection, rotate the light head by hand to set the preferred illumination angle.
OEM / ODM project support
From Inquiry to Mass Production
Inquiry
Send showcase dimensions, target finish, CCT, voltage and estimated quantity.
AutoCAD / Mock-up
We confirm installation details, cable routing and appearance before sampling.
Mass Production
Approved specifications are controlled for consistent multi-store rollout supply.
Frequently Asked Questions
Is this a single-post or double-post showcase light?
It is a double-post design. One slim support rod is positioned at each end of the horizontal LED light bar for stable installation.
Can the light direction be adjusted after installation?
Yes. The light head rotates through 355°, allowing merchandisers to redirect the beam without rebuilding the fixture.
Which color temperatures and finishes are available?
Standard CCT options are 3000K, 4000K and 6500K. Aluminum finishes include silver, black, white and gold.
Can UnioneLED customize the dimensions for our showcase?
Yes. Light-bar length, support-rod height, mounting details and cable exit can be matched to your drawings or mock-up.
What information is needed for a factory quotation?
Please provide the required quantity, showcase width, post height, 12V or 24V input, CCT, finish and project schedule.
For broader professional lighting terminology and international reference material, consult the International Commission on Illumination (CIE).
Specify Your Jewelry Showcase Door Type Light
Send your fixture drawing for a tailored recommendation, mock-up sample and factory-direct bulk quotation.
Inquire Factory Bulk PriceExplore the complete Jewelry Showcase Display Lighting range.
