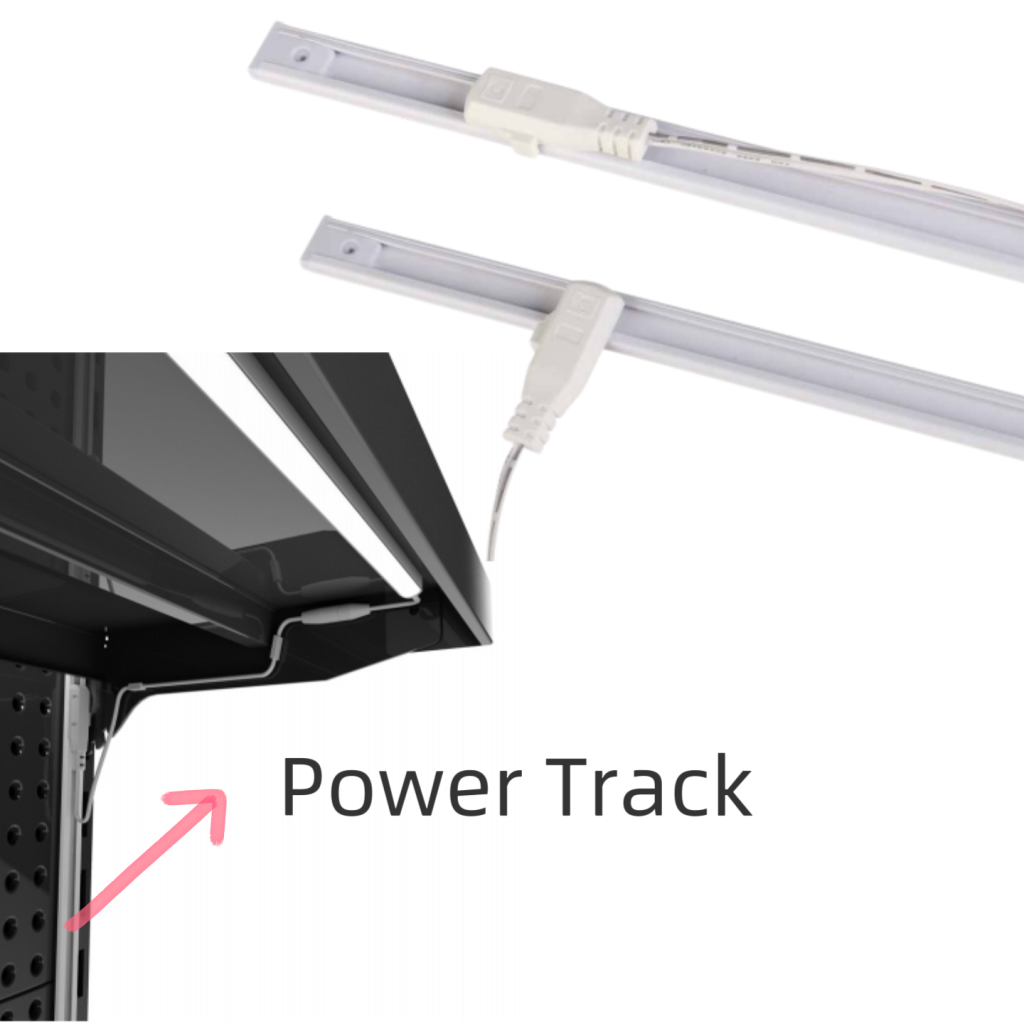

Magnetic Power Track for Retail Shelf Lighting
The Magnetic Power Track is a low-voltage power distribution system designed for compatible metal retail shelving and LED shelf lighting. The track attaches to suitable metal shelf structures by magnetic installation and works with dedicated connectors to distribute power to compatible LED shelf lights.
Available in black and white, the Magnetic Power Track supports 12V and 24V shelf lighting system configurations. Track and connector configuration can be matched according to shelf dimensions, lighting layouts and different retail fixture requirements.
8A Rated Current
Shelf Lighting Systems
12V / 24V DC
Low-Voltage Power System
Magnetic Installation
Compatible Metal Shelving
What Is a Magnetic Power Track?
A Magnetic Power Track is a low-voltage power distribution system designed for metal retail shelving and compatible LED shelf lighting. The track attaches to suitable metal shelf structures by magnetic installation, helping simplify installation and reduce the need for visible external wiring.
UnioneLED offers the Magnetic Power Track in 12V and 24V system configurations, with black and white track options. Track and connector configuration can be matched according to different retail fixture and merchandising requirements.
Key Product Features
Magnetic Installation
The magnetic mounting design allows the power track to attach directly to compatible metal shelf structures, helping simplify installation and repositioning.
8A Rated Current
The Magnetic Power Track is rated at 8A for compatible low-voltage LED shelf lighting system configurations.
Copper Power Distribution
PVC and copper construction provides integrated low-voltage power distribution for compatible LED shelf lighting systems.
12V / 24V Low-Voltage System
Designed for 12V or 24V DC shelf lighting systems and compatible connectors according to the retail fixture configuration.
Black & White Track Options
Available in black and white to coordinate with different metal shelving structures, fixture finishes and retail environments.
Configurable for Retail Fixtures
Track length, connector configuration and shelf lighting layout can be selected according to shelf dimensions and project requirements.
Technical Specifications
Applications for Metal Retail Shelving
The Magnetic Power Track is designed for compatible metal retail shelving and display fixtures requiring integrated low-voltage power distribution for LED shelf lighting.
Supermarket Gondola Shelving
Power distribution for LED shelf lighting installed across compatible supermarket gondola and merchandise shelving.
Convenience Store Shelving
Supports integrated shelf lighting layouts for compatible metal retail shelving and product displays.
Metal Retail Display Shelving
Magnetic installation provides a practical power distribution option for compatible metal retail shelves and display fixtures.
Custom Retail Fixtures
Track length, connector position and compatible LED shelf lighting can be configured according to fixture dimensions and project requirements.

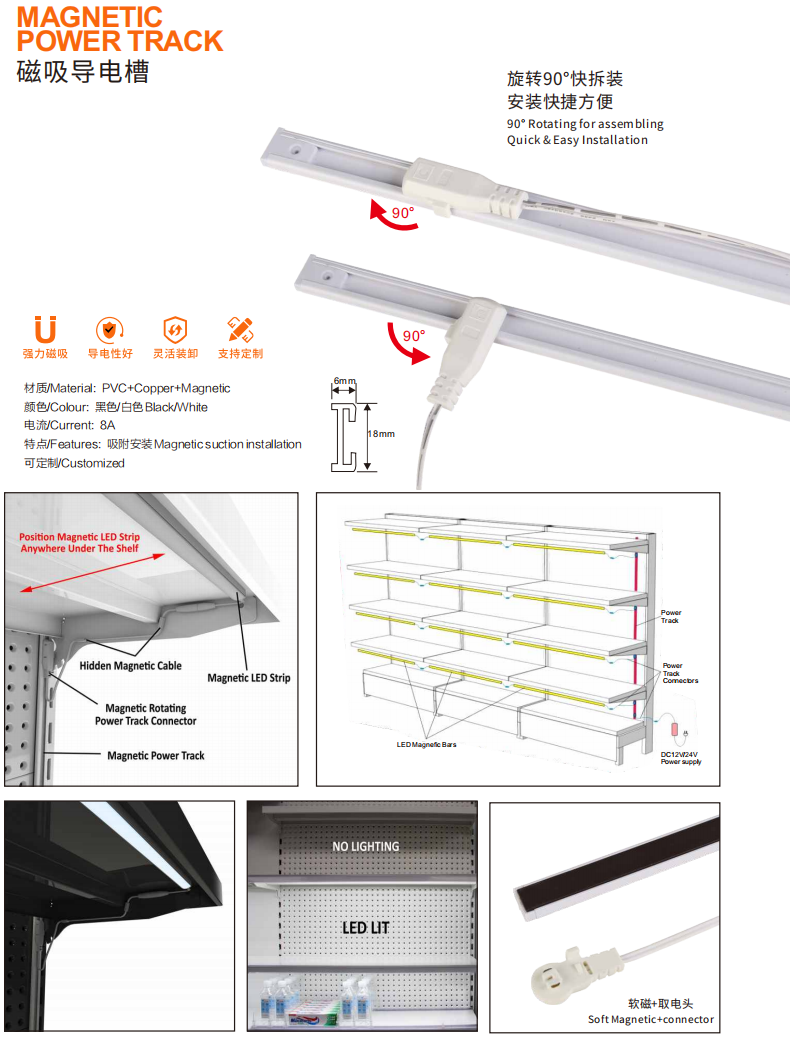

How Does the Magnetic Power Track Work?
The Magnetic Power Track distributes 12V or 24V DC power along compatible metal retail shelving and connects the power supply to LED shelf lights through dedicated shelf connectors.
12V / 24V Power Supply
A compatible low-voltage power supply provides the required 12V or 24V DC power for the shelf lighting system.
Magnetic Power Track
The magnetic power track mounts onto compatible metal shelf structures and distributes low-voltage power along the shelving.
Shelf Connector
A compatible connector transfers power from the magnetic track to each illuminated shelf according to the fixture and lighting layout.
LED Shelf Light
The connected LED shelf light provides integrated illumination for merchandise displays and retail shelving.
Complete System Configuration
Power Supply → Magnetic Power Track → Shelf Connector → LED Shelf Light. Track length, connector position, power supply and lighting configuration can be selected according to the retail fixture structure and project requirements.
Custom Configuration for Your Retail Fixture
Metal retail shelving systems can vary in shelf dimensions, installation positions and LED lighting layouts. The Magnetic Power Track can be configured according to your fixture structure, power requirements and compatible LED shelf lighting system.
Track Configuration
Matched according to the shelving structure, installation position and project layout.
12V / 24V System
Configured as part of a compatible low-voltage LED shelf lighting system.
Black or White Track
Select the track color according to the retail fixture design and finish.
Connector Configuration
Match connectors according to shelf positions, track arrangement and lighting layout.
Shelf Lighting Layout
Plan compatible LED shelf lighting positions according to the display requirements.
Complete System Matching
Coordinate the track, connectors, LED shelf lights and power supply according to the retail fixture.
Build a Complete Shelf Lighting System
The Magnetic Power Track is one part of a complete low-voltage shelf lighting system. Power track, connectors, power supply and LED shelf lights should be matched according to the metal retail shelving structure and project requirements.
Magnetic Power Track
Provides low-voltage power distribution along compatible metal retail shelving with magnetic installation.
Explore Shelf Power Track Systems →Shelf Connector
Transfers low-voltage power from the magnetic track to each illuminated shelf according to the fixture structure and lighting layout.
LED Shelf Light
Compatible LED shelf lights provide integrated illumination for supermarket shelves, retail displays and metal shelving fixtures.
Explore LED Shelf Lighting →12V / 24V Power Supply
Provides the required low-voltage DC power for the Magnetic Power Track and compatible LED shelf lighting configuration.
System Matching for Your Retail Fixture
Different metal shelving structures may require different track configurations, connector positions, power supplies and lighting configurations. Send us your shelf drawing, dimensions or installation photos and we can help review a suitable system configuration for your project.
Ordering & Project Information
From sample evaluation to commercial retail projects, UnioneLED supports 4.5mm Magnetic Power Track configurations according to shelf dimensions, metal fixture structure, connector layout and LED shelf lighting requirements.
Sample & Order Quantity
Sample Evaluation SupportedSamples can be arranged for product evaluation and compatibility testing before volume orders. Order quantity can be discussed according to project requirements.
Production Lead Time
Based on Project ConfigurationLead time depends on track length, color, connector configuration, order quantity and other project-specific requirements.
International B2B Orders
Export Project SupportCommercial terms and shipping arrangements can be confirmed according to order quantity, destination and project requirements.
Project Packaging
Protection for International ShippingPackaging can be selected according to track length, order quantity and transportation requirements to help protect power track components during international shipment.
Warranty Support
Confirmed by Product ConfigurationWarranty terms are confirmed according to the selected power track, connector, power supply and LED shelf lighting configuration.
Fixture & System Review
Send Your Shelf InformationShelf drawings, metal fixture dimensions and installation photos can be reviewed to help match the 4.5mm magnetic power track, connector, power supply and LED shelf lighting system.
Planning a Sample or Commercial Retail Project?
Send us your shelf drawing, required quantity, dimensions and project information. We can review the suitable 4.5mm Magnetic Power Track configuration and confirm the corresponding sample, production and ordering details.
Retail Project Experience & Applications
UnioneLED supports retail fixture manufacturers, shopfitters and commercial display projects with magnetic shelf power track and LED shelf lighting configurations for different metal shelving structures and retail environments.
“UnioneLED is our primary lighting supplier in China. When exploring alternatives at FESPA Barcelona, our team’s consistent feedback was: ‘That’s not interesting for us, we have Candy.’ Reliability and proactive project support are why we trust them with our large-scale orders.”
Application requirements can vary according to metal shelf structure, track installation position, connector layout and LED lighting design. UnioneLED can review fixture drawings, dimensions and installation photos to help match the suitable 4.5mm Magnetic Power Track and complete shelf lighting configuration.
Frequently Asked Questions
Common questions about Magnetic Power Track configuration, installation and compatibility with LED shelf lighting systems.
What is a Magnetic Power Track?
A Magnetic Power Track is a low-voltage power distribution system designed for compatible metal retail shelving. It distributes 12V or 24V DC power to compatible LED shelf lights through dedicated connectors.
What type of retail shelving is it designed for?
It is designed for compatible metal retail shelving and display fixtures where magnetic installation and integrated low-voltage shelf lighting are required.
Does the Magnetic Power Track support both 12V and 24V?
Yes. The Magnetic Power Track can be configured as part of compatible 12V or 24V DC LED shelf lighting systems according to the project requirements.
What is the rated current of the Magnetic Power Track?
The Magnetic Power Track is rated at 8A.
Can the track color and connector configuration be customized?
The track is available in black and white. Connector and system configuration can be matched according to the retail fixture structure, shelf positions and LED lighting layout.
What information should I send for a shelf lighting project?
Send your shelf drawing or dimensions, installation photos, required LED lighting positions and any available information about the 12V or 24V system requirement. This helps us review a suitable track, connector and shelf lighting configuration.
Need Help Matching the Power Track to Your Shelf?
Send us your retail shelf drawing, dimensions or installation photos. We can review the fixture structure and help match the Magnetic Power Track, connectors, power supply and compatible LED shelf lighting.
Send Your Project Information →
Why Work With UnioneLED?
UnioneLED provides shelf power track and LED shelf lighting solutions for retail fixture manufacturers, shopfitters and commercial display projects. We support system matching according to the actual shelving structure instead of treating the power track as an isolated component.
Complete Shelf Lighting Solution
Power track, connectors, power supply and compatible LED shelf lights can be coordinated as one integrated shelf lighting system.
Fixture-Based Configuration
Track and connector configurations can be reviewed according to shelf dimensions, fixture structure and required LED lighting positions.
Custom Project Support
Black or white track, connector configuration and compatible shelf lighting can be matched according to different retail fixture projects.
B2B Retail Display Experience
Solutions are developed for commercial retail shelving, shopfitting and display fixture applications where lighting and power distribution need to work together.
Need a 4.5mm Magnetic Power Track for Your Retail Fixture?
Send us your shelf drawing, dimensions or installation photos. UnioneLED can help review your metal shelving structure and recommend a suitable 4.5mm Magnetic Power Track, connector, power supply and compatible LED shelf lighting configuration for your project.
For B2B retail fixture, shopfitting and commercial display projects.
