Mini Magnetic Power Track for Retail Shelf Lighting
The Mini Magnetic Power Track is a compact low-voltage power distribution system designed for compatible metal retail shelving and LED shelf lighting. With a slim 14.5 × 5.8mm profile, the track attaches to suitable metal shelf structures by magnetic installation and distributes power to compatible LED shelf lights through dedicated connectors.The 4.5mm Magnetic Power Track is a slim 12V/24V low-voltage power distribution system designed for metal retail shelving and LED shelf lighting. Its magnetic installation allows the track to be mounted directly onto compatible metal shelf structures while providing power to LED shelf lights through dedicated connectors.
Available in black and white, the 4.5mm track can be configured according to shelf dimensions, connector requirements and LED lighting layouts for different retail fixture projects.
14.5 × 5.8mm
Compact Track Profile
8A Rated Current
12V / 24V System
Magnetic Installation
Compatible Metal Shelving
What Is a Mini Magnetic Power Track?

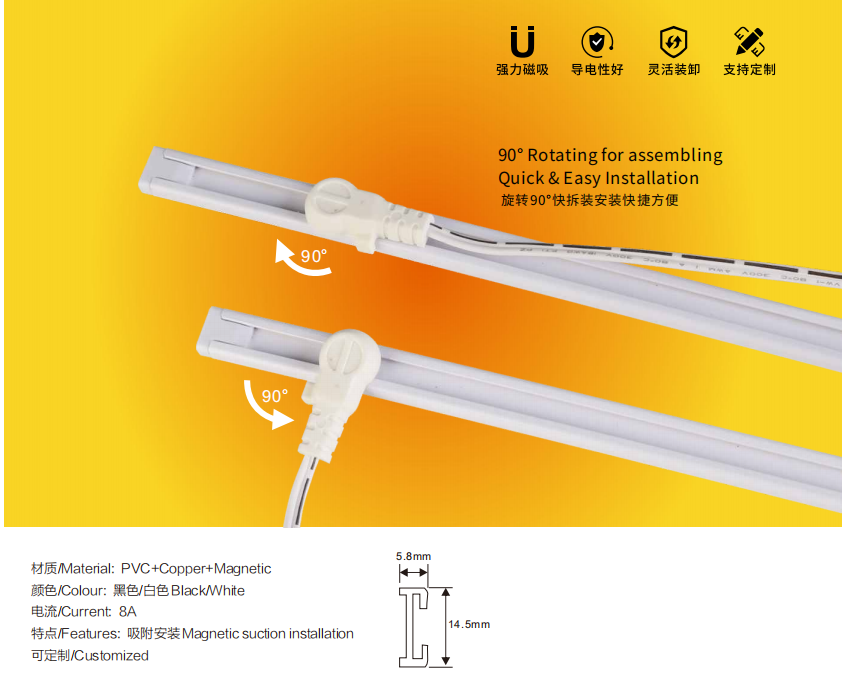

A Mini Magnetic Power Track is a compact low-voltage power distribution system designed for compatible metal retail shelving and LED shelf lighting. Its 14.5 × 5.8mm cross-section provides a smaller track profile for retail fixtures where installation space and visual integration are important.
Made from PVC, copper and magnetic components, the track attaches to suitable metal shelf structures by magnetic installation. It works with dedicated connectors and compatible LED shelf lights as part of a 12V or 24V DC shelf lighting system.
Key Product Features
14.5 × 5.8mm Compact Profile
The compact track profile provides a smaller power distribution option for compatible metal retail shelving and display fixtures.
Magnetic Installation
The magnetic mounting design allows the power track to attach directly to compatible metal shelf structures for convenient integration.
8A Rated Current
The Mini Magnetic Power Track is rated at 8A for compatible low-voltage LED shelf lighting system configurations.
12V / 24V Low-Voltage System
Designed for compatible 12V or 24V DC shelf lighting systems with matched connectors and LED shelf lights.
Black & White Track Options
Available in black and white to coordinate with different metal shelving structures, fixture finishes and retail environments.
Configurable for Retail Fixtures
Track and connector configuration can be matched according to shelf dimensions, installation positions and LED lighting requirements.
Technical Specifications
Applications for Compact Retail Shelf Lighting
The Mini Magnetic Power Track is designed for compatible metal retail shelving and display fixtures requiring compact low-voltage power distribution for LED shelf lighting.
Supermarket Gondola Shelving
Compact power distribution for compatible supermarket gondola shelving equipped with integrated LED shelf lighting.

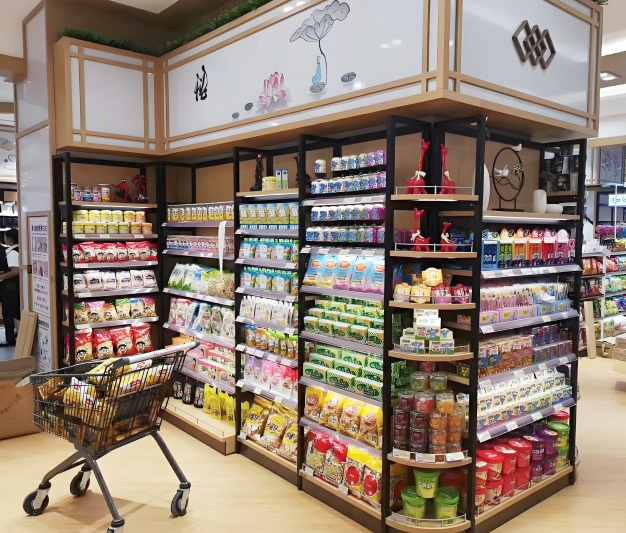

Convenience Store Shelving
Supports integrated shelf lighting layouts for compatible metal shelving in convenience stores and compact retail environments.

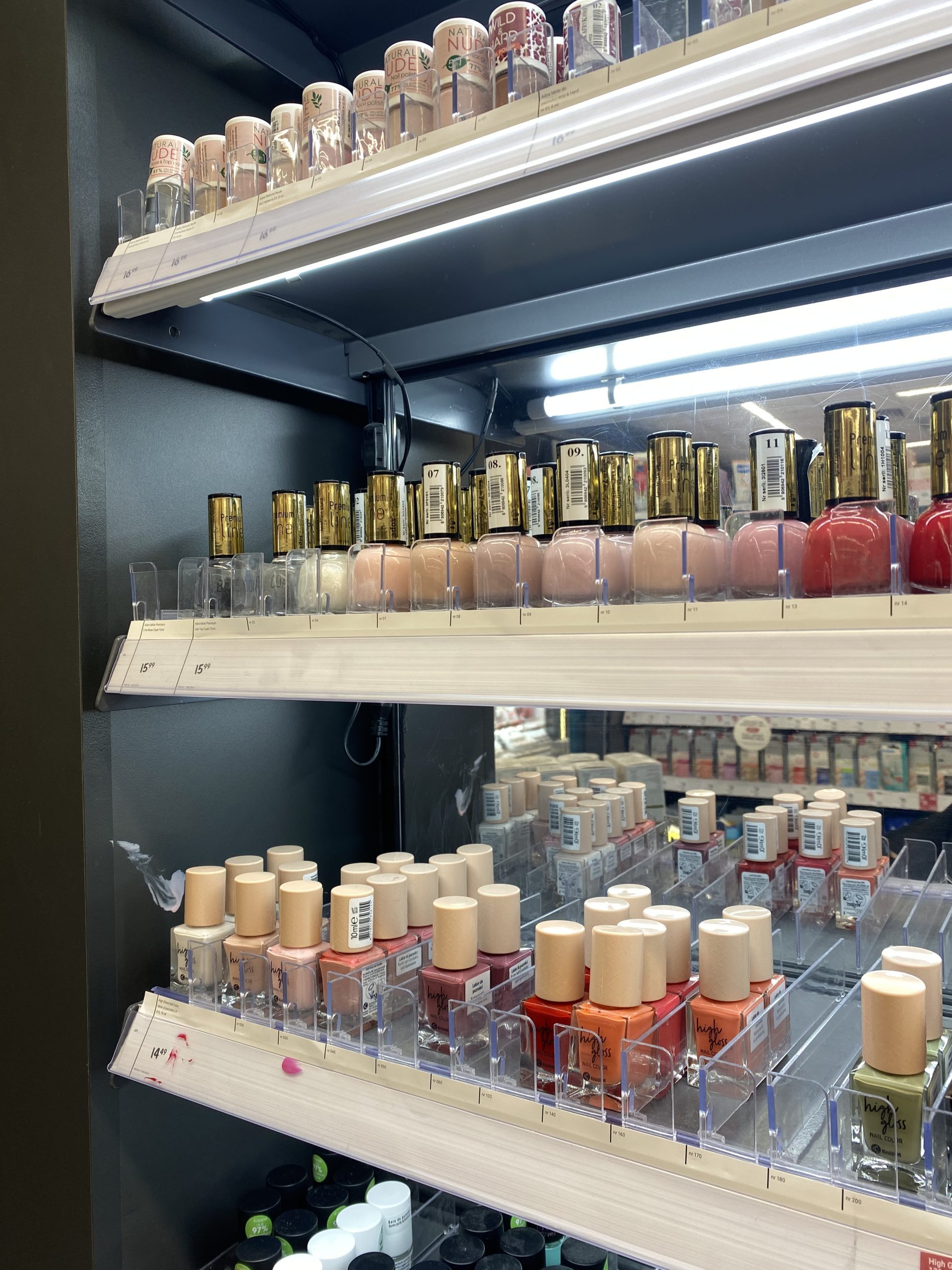

Metal Retail Display Shelving
The compact track profile provides a practical power distribution option for compatible metal product displays and retail shelving.
Custom Retail Fixtures
Track, connector and LED shelf lighting configurations can be matched according to fixture dimensions and project requirements.
How Does the Mini Magnetic Power Track Work?
The Mini Magnetic Power Track distributes 12V or 24V DC power along compatible metal retail shelving and connects the power supply to LED shelf lights through dedicated connectors.
12V / 24V Power Supply
A compatible low-voltage power supply provides the required 12V or 24V DC power for the shelf lighting system.
Mini Magnetic Power Track
The 14.5 × 5.8mm magnetic power track mounts onto compatible metal shelf structures and distributes low-voltage power along the shelving.
Power Track Connector
A matched connector transfers power from the track to compatible LED shelf lighting according to the fixture configuration.
LED Shelf Light
The connected LED shelf light provides integrated illumination for merchandise displays and retail shelving.
Power Supply → Mini Magnetic Power Track → Power Track Connector → LED Shelf Light. Track, connector, power supply and lighting configuration can be matched according to the retail fixture structure and project requirements.
Custom Configuration for Your Retail Fixture
Retail shelving systems can vary in dimensions, installation positions and LED lighting layouts. The Mini Magnetic Power Track can be configured according to the actual fixture structure and project requirements.
Mini Track Profile
The 14.5 × 5.8mm profile provides a compact power track option for compatible metal retail shelving.
12V / 24V System
Configure the track as part of a compatible 12V or 24V DC LED shelf lighting system.
Black or White Track
Select the track color according to the retail fixture design and finish.
Connector Configuration
Match connectors according to shelf positions, track arrangement and lighting layout.
Shelf Lighting Layout
Plan compatible LED shelf lighting positions according to the merchandise display requirements.
Complete System Matching
Coordinate the Mini Magnetic Power Track, connectors, LED shelf lights and power supply according to the retail fixture.
Build a Complete Mini Shelf Lighting System
The Mini Magnetic Power Track is one part of a complete low-voltage shelf lighting system. Power track, connectors, power supply and LED shelf lights should be matched according to the metal retail shelving structure and project requirements.
Mini Magnetic Power Track
Provides compact low-voltage power distribution along compatible metal retail shelving with magnetic installation.
Explore Shelf Power Track Systems →Power Track Connector
Transfers low-voltage power from the Mini Magnetic Power Track to each illuminated shelf according to the fixture structure and lighting layout.
LED Shelf Light
Compatible LED shelf lights provide integrated illumination for supermarket shelves, retail displays and metal shelving fixtures.
Explore LED Shelf Lighting →12V / 24V Power Supply
Provides the required low-voltage DC power for the Mini Magnetic Power Track and compatible LED shelf lighting configuration.
System Matching for Your Retail Fixture
Different metal shelving structures may require different track configurations, connector positions, power supplies and lighting configurations. Send us your shelf drawing, dimensions or installation photos and we can help review a suitable system configuration.
Ordering & Project Information
From sample evaluation to commercial retail projects, UnioneLED supports Mini Magnetic Power Track configurations according to shelf dimensions, metal fixture structure, connector layout and LED shelf lighting requirements.
Start with Your Retail Fixture
Send your shelf drawing, dimensions or installation photos so the required track and lighting configuration can be reviewed.
Match the Components
Confirm the track arrangement, connectors, 12V or 24V power system and compatible LED shelf lighting according to the fixture.
Retail Fixture Projects
Configurations can be reviewed for retail fixture manufacturers, shopfitters and commercial display projects.
Send Us Your Shelf Drawing
Send us your shelf drawing, dimensions or installation photos. We can help review a suitable Mini Magnetic Power Track, connector, power supply and LED shelf lighting configuration for your project.
Retail Project Experience & Applications
UnioneLED supports retail fixture manufacturers, shopfitters and commercial display projects with magnetic shelf power track and LED shelf lighting configurations for different metal shelving structures and retail environments.
“UnioneLED is our primary lighting supplier in China. When exploring alternatives at FESPA Barcelona, our team’s consistent feedback was: ‘That’s not interesting for us, we have Candy.’ Reliability and proactive project support are why we trust them with our large-scale orders.”
Application requirements can vary according to metal shelf structure, track installation position, connector layout and LED lighting design. UnioneLED can review fixture drawings, dimensions and installation photos to help match the suitable 4.5mm Magnetic Power Track and complete shelf lighting configuration.
Frequently Asked Questions
Common questions about Mini Magnetic Power Track dimensions, configuration, installation and compatibility with LED shelf lighting systems.
What is a Mini Magnetic Power Track?
A Mini Magnetic Power Track is a compact low-voltage power distribution system designed for compatible metal retail shelving and LED shelf lighting. It features a 14.5 × 5.8mm track profile and magnetic installation.
What is the size of the Mini Magnetic Power Track?
The Mini Magnetic Power Track has a compact cross-section of 14.5 × 5.8mm.
Does the Mini Magnetic Power Track support both 12V and 24V?
Yes. It can be configured as part of compatible 12V or 24V DC LED shelf lighting systems.
What is the rated current of the Mini Magnetic Power Track?
The Mini Magnetic Power Track is rated at 8A.
What colors are available?
The Mini Magnetic Power Track is available in black and white.
Can the Mini Magnetic Power Track system be customized?
Yes. Track and system configuration can be matched according to the retail fixture structure, shelf dimensions, connector positions and LED shelf lighting requirements.
Need Help Matching the Mini Power Track to Your Shelf?
Send us your retail shelf drawing, dimensions or installation photos. We can review the fixture structure and help match the Mini Magnetic Power Track, connectors, power supply and compatible LED shelf lighting.
Send Your Project Information →
Need a mini Magnetic Power Track for Your Retail Fixture?
Send us your shelf drawing, dimensions or installation photos. UnioneLED can help review your metal shelving structure and recommend a suitable 4.5mm Magnetic Power Track, connector, power supply and compatible LED shelf lighting configuration for your project.
For B2B retail fixture, shopfitting and commercial display projects.
